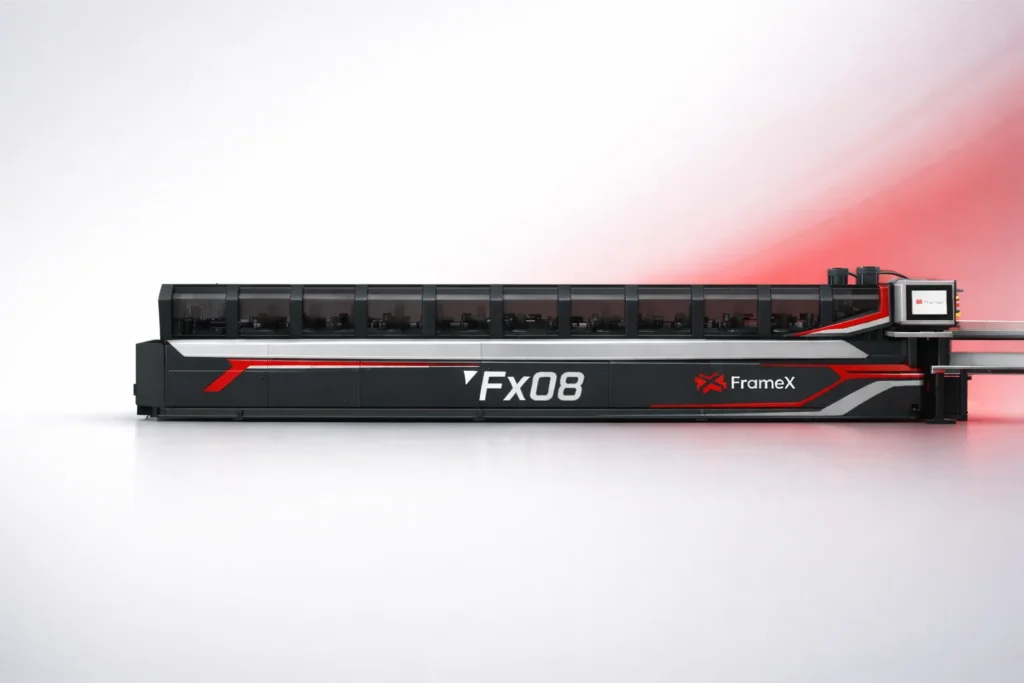

Fx08 is the advanced variant of Fx06—built for high-demand commercial and mid-rise production. It delivers repeatable, labeled components with expanded automation and workflow support, helping teams run larger volumes with consistent accuracy and cleaner cutouts. For growing operations that need more output and tighter process control, Fx08 is the next step up.
Multiple web size profiles (C+C & C+U)
21–12 ga (0.8–2.5 mm)
30 m/min (1800 m/hr)
Commercial / Mid-Rise • 8+ storeys
Repeatable parts and clean cutouts speed assembly—saving time, waste, and jobsite labor.
Repeatable output helps deliver straighter walls and cleaner openings.
Reliable throughput and workflow support growth as demand increases.
PROFILE SIZES CAPABLE — C PROFILE
A6-89/100/150/200/250/300 (89/100/150/200/250/300 × 50 × 15 mm) or more
PROFILE SIZES CAPABLE — U PROFILE
A6-89/100/150/200/250/300 + 2t (thickness) or more
THICKNESS RANGE
21–12 ga (0.8–2.5 mm)
MAIN DRIVE MOTOR
Min. 30 HP (22.5 kW) servo motor
HYDRAULIC POWER
30 HP (22.5 kW), 20 L accumulator + oil cooler
DIMENSIONS (L×W×H)
36.1 ft × 5.9 ft × 5.9 ft
(11000 × 1800 × 1800 mm)
MACHINE WEIGHT
22,046 lb (10,000 kg)
UNCOILER
Powered, 8,818 lb (4,000 kg)
DESIGN SOFTWARE
Vertex BD
MACHINE CONTROL
Windows-based PC control
NC LINK
Full NC linked with Vertex BD
software function
3D Modeling, Detailing, Structure calculations
MAX LINE SPEED
30 m/min (≈ 1800 m/hr)
TOOLING PUNCH
Service hole • Web notch • Lip cut • Truss • Anchor hole • Dimple • Swage • Crimp • Shear • Bolt holes • Big oval hole
PART MARKING
Hitachi industrial inkjet printer
PRODUCTION FLOW
Uncoiler (coil) → Automatic punching → Roll forming (incl. Windows base control) → Automatic shearing device → Product run-out table
Share your project type and timeline. We’ll respond with recommended configuration + pricing.
