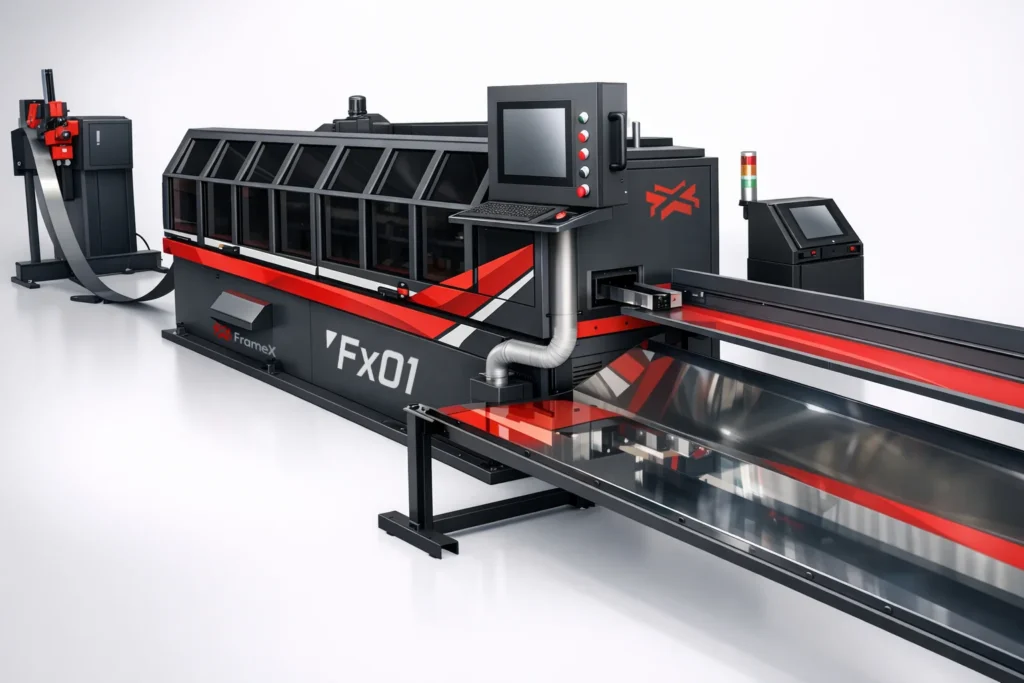

Designed for contractors moving from timber to steel, Fx01 delivers predictable output and clean components you can install faster — with profile flexibility, reliable thickness range, and production speed built for repeatable results.
1 web size profile (C+C & C+U)
24–16 ga (0.6–1.5 mm)
30 m/min (1800 m/hr)
Residential • Up to 5 storeys
Repeatable parts and clean cutouts speed assembly—saving time, waste, and jobsite labor.
Repeatable output helps deliver straighter walls and cleaner openings.
Reliable throughput and workflow support growth as demand increases.
PROFILE SIZES CAPABLE – C PROFILE
A1-75 (75×41 mm)
A1-89 (89×41 mm)
A1-100 (100×41 mm)
A1-140 (140×41 mm)
A1-150 (150×41 mm)
PROFILE SIZES CAPABLE – U PROFILE
A1-75 (78×38 mm)
A1-89 (92×38 mm)
A1-100 (103×38 mm)
A1-140 (143×38 mm)
A1-150 (153×38 mm)
MAIN DRIVE MOTOR
10 HP (7.5 kW) servo motor
HYDRAULIC POWER
7.5 HP (5.5 kW), 3 L accumulator + oil cooler
DIMENSIONS (L×W×H)
13.1 ft × 4.4 ft × 4.8 ft
(4000 × 1350 × 1450 mm)
MACHINE WEIGHT
7716 lb (3500 kg)
UNCOILER
Powered, 4409 lb (2000 kg)
DESIGN SOFTWARE
Vertex BD
MACHINE CONTROL
Windows-based PC control
software function
3D Modeling, Detailing, Structure calculations
NC LINK
Full NC linked with Vertex BD
MAX LINE SPEED
30 m/min (≈ 1800 m/hr)
TOOLING PUNCH
Service hole • Web notch • Lip cut • Truss • Dimple • Swage • Crimp • Shear
PART MARKING
Hitachi industrial inkjet printer
